Hydra Grapple Motor

Replacement motors for HG61 - HG242 grapples

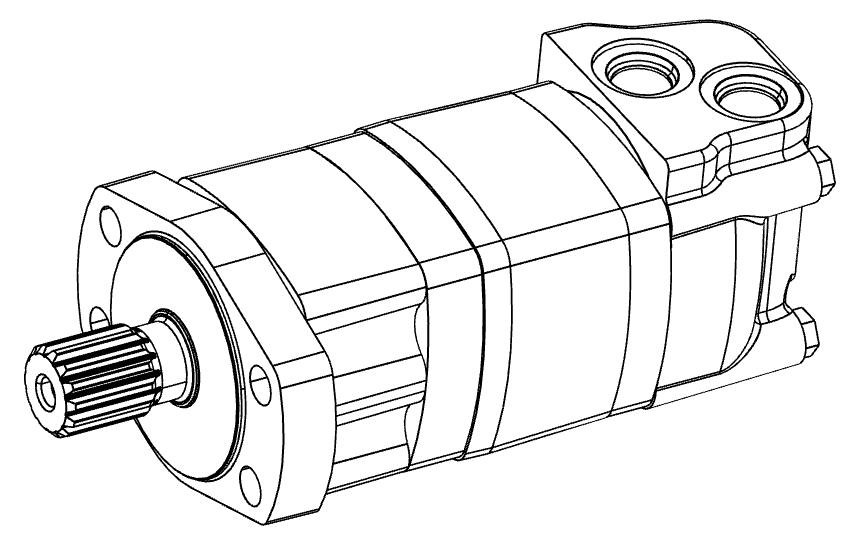

Ported

• Has two threaded ports
• 4 bolt flange
• 13T spline end

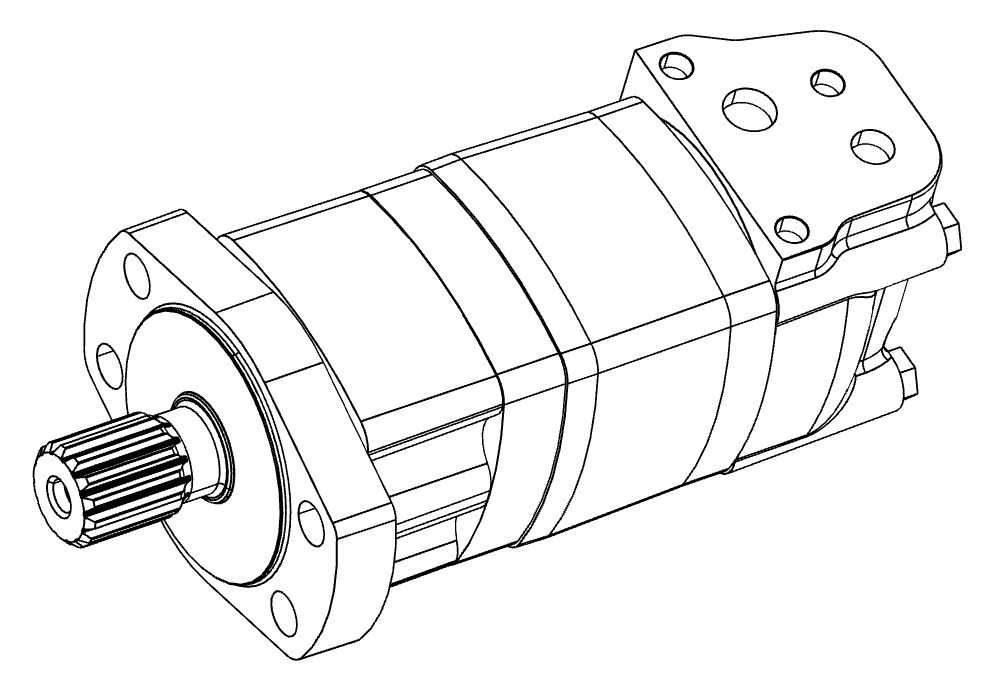

Manifold Mount

• Has machined surfaced for bolting the manifold
• 4 bolt flange
• 13T spline end

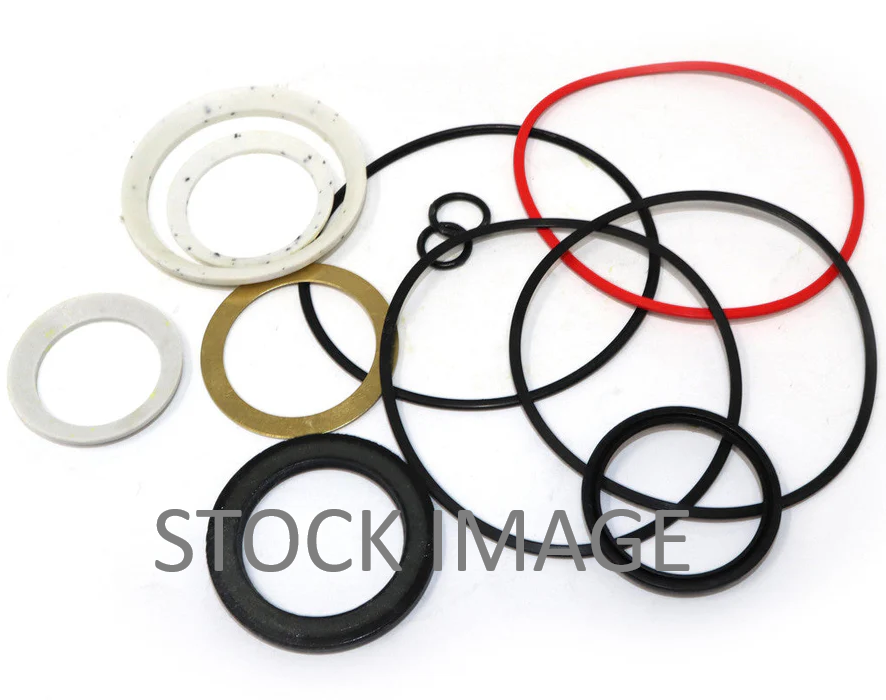

Seal Kit

• Replacement high pressure seal kit
• Recommended Eaton certified dealer install ONLY
• CMP Does not warranty motors that may have been disassembled

NOTE: Do not remove the 4 hex bolts on the motor. This will immediately void warranty. To remove motor, Use 3/8" allen key to remove the SHCS inside the tube at the base of the motor.
